Localize download URL in image fragment in 7.2.x writing a custom fragment

Issue

• It is not possible to translate the link of a fragment image in order to download different documents for each language hosted in the Document Library.

Environment

• Liferay DXP 7.2 and 7.3

Resolution

• Following these steps, you can create your own customizable fragment image that allows translation of the URL for each available language in your site. Note, this is just a suggested way to achieve this feature; it should be adapted and tested for each particular use case.
• You need to create a custom fragment using a text type field <lfr-editable id="text-href-editable" type="text">, since this field is localizable.

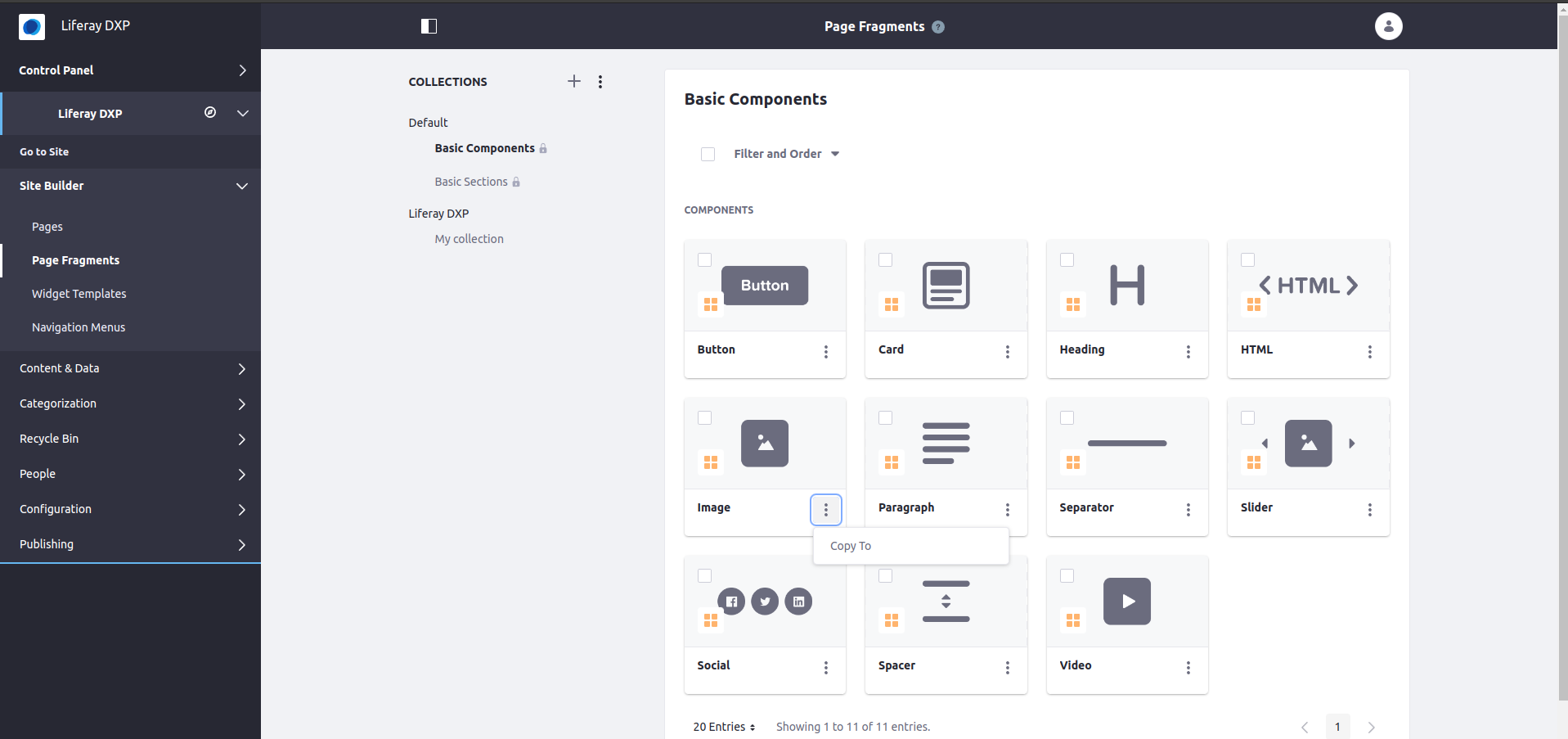

• Start by copying the current image fragment source code, from Site Builder > Page fragments > Collections > Default > Basic components > 3-dot menu in Image fragment > Copy to and select your collection.
• Once this fragment is copied, we need to add a container for our editable text, <div id="text-href-content" style="display:none;">, which by default would be hidden until we are in edit mode. This contains the element letting us translate the URL value <lfr-editable id="text-href" type="text">. Once in view mode, the translated URL text will be filled inside <div id="text-href">, which will then be copied to the href attribute of the downloading link <a id="localized-href" href="#">. As a result, your HTML fragment structure should look something like this:

  <div class="component-image pb-${configuration.bottomSpacing} overflow-hidden text-${configuration.imageAlign}">
    <div id="text-href-content" style="display:none;">
      Translate URL:
      <div id="text-href">
        <lfr-editable id="text-href" type="text"></lfr-editable>
      </div>
    </div>
    <a id="localized-href" href="#">
      <lfr-editable id="image-square" type="image">
        <img id="custom-img" alt="Responsive Image" class="${configuration.imageSize}" src="" />
      </lfr-editable>
     </a>
  </div>

• For this HTML to work, the JavaScript section will need the following code snippet:

  const queryString = window.location.search;

  const hrefContent = document.getElementById("text-href-content");

  if (hrefContent) {
    hrefContent.style.display = "none";
  }

  if(queryString && URLSearchParams) {
    const urlParams = new URLSearchParams(queryString);
    const p_l_mode = urlParams.get('p_l_mode');

    if (p_l_mode === "edit") {
      if (hrefContent) {
        hrefContent.style.display = "block";
      }
    }
  } else if (!queryString) {
    console.log("queryString not found");
  } else if (!URLSearchParams) {
    console.log("Method URLSearchParams not supported");
  }

  const hrefEl = document.getElementById("text-href");

  const href = hrefEl.textContent || hrefEl.innerText;

  document.getElementById("localized-href").href = href;

• This code will be in charge to detect if we are in edit mode by reading if the parameter p_l_mode exists in the navigation URL, if so, we display element ID text-href-content so the user can edit and localize it and once in view mode the element ID text-href would provide the translated text to link ID localized-href.

Additional Information

• In our JavaScript code snippet example, we use URLSearchParams to get the parameters from the link, but this is not supported in Internet Explorer 11 (see URLSearchParams#browser_compatibility). If you need support in IE11, you have to change this with a regular expression to obtain the same result.
• Starting with DXP 7.4 you can translate the links in the Image fragment; this change was done under LPS-102358.
• To know more about fragment fields, please check our documentation: Fragment specific tags.
